- ✔PORTABLE: Keep the compass near you with a belt loop attachment, or place it safely in your pocket with a carrying case, so you can keep your hands gripped on the mountain you’re scaling
- ✔Function introduction: basic positioning, lateral deflection angle, map positioning.
- ✔Description: The dial is 45 mm in diameter, the scale is accurate, it can be rotated, and a magnifying glass is attached.
- ✔The foldable shell has an average thickness of 2 mm and is strong.
- ✔EASY AND ACCURATE READINGS - The floating compass dial has a 360 degrees scale with liquid-filled capsule for stable operation. Featured with a level bubble to improve accuracy, the easy to see sighting window with reticle makes it easy to aim and read.
This professional grade military compass will always lead you in the right direction. Ideal for camping, military usage, emergencies, and anywhere the beaten track takes you
The base and cover are constructed with metal for years of durable using. Suitable for motoring, boating, camping, mountaineering, exploring, hunting, and other outdoor activities.

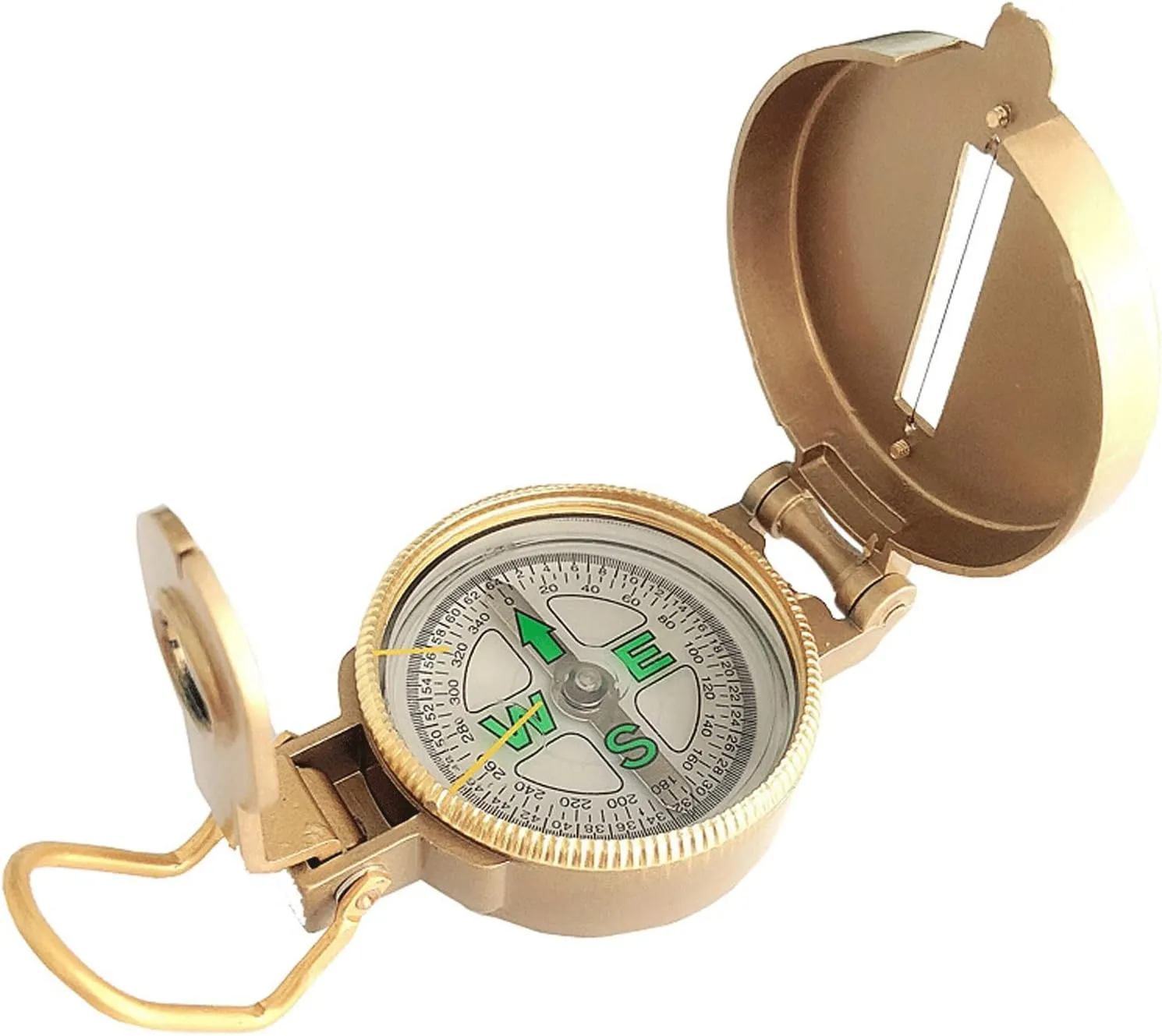

Product name: golden spiral compass
Size: 9*6*3CM (length*width*height)
Unfold 7.5*5.5*2.6CM (length*width*height) to fold.
Dial diameter: 4.6CM
Weight: 100G (including packaging)
Structure and performance:
1. Orientation measuring institution:
It is composed of compass, sight and sight. The outer circle of the azimuth division is a 360° division system with a minimum division value of 2°; the inner circle is a 60-00 density division system, and the minimum division value is 0-20 divisions. The conversion between density and degree is shown in the table.
Measurement accuracy: ±0-10 dense position ±1°
2. Distance estimator:
It is composed of rear sight and front sight. The angle between the two tips of the front sight and the center edge of the rear sight is 1-00, the length between the two tips is 12.34 mm, and the length between the rear sight and the front sight is 123.4 mm, which constitutes a 10:1 ratio ranging estimator.
Measurement accuracy is 5%
3. Pitch angle measurement mechanism:
It is composed of a tilt meter plate, a tilt pendulum, a head-up mirror, etc., and its range is ±90°.
Measurement accuracy ±2.5°
4. Coordinate ladder:
It consists of a long ruler on one side and a short ruler on both sides that are perpendicular to each other. The ruler is 120 mm long.
Measurement accuracy: ±0.5 mm
Please allow slight dimension difference due to different manual measurement.
